一般规格 |
|
扬声器类型 |

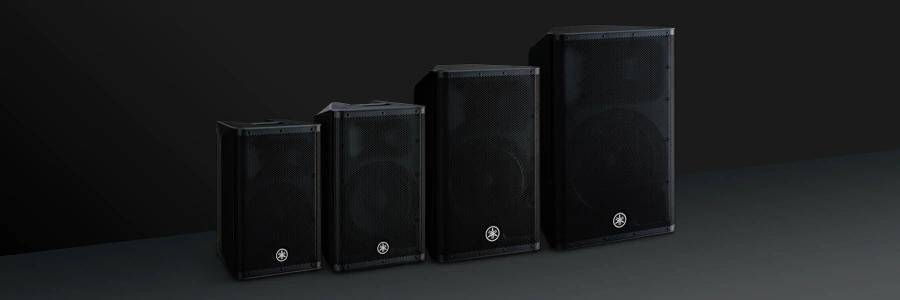

15" 2-way, Bi-amp powered speaker, Bass-reflex type |
12" 2-way, Bi-amp powered speaker, Bass-reflex type |
10" 2-way, Bi-amp powered speaker, Bass-reflex type |
8" 2-way, Bi-amp powered speaker, Bass-reflex type |
|
频率响应（-10dB） |
49Hz - 20kHz |
52Hz - 20kHz |
56Hz - 20kHz |
57Hz - 20kHz |
|
标称覆盖 |
H |
90° |
90° |
90° |
90° |
|
V |
60° |
60° |
60° |
60° |
|
单元 |
LF |
Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite |
Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite |
Diameter:10" cone, Voice Coil:2", Magnet:Ferrite |
Diameter:8" cone, Voice Coil:2", Magnet:Ferrite |
|
HF |
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
|
分频点 |
FIR-X tuning™ (linear phase FIR filter) |
FIR-X tuning™ (linear phase FIR filter) |
FIR-X tuning™ (linear phase FIR filter) |
FIR-X tuning™ (linear phase FIR filter) |
|
输出功率 |
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
|
***输出电平（1m，轴上） |
133dB SPL |
132dB SPL |
131dB SPL |
129dB SPL |
|

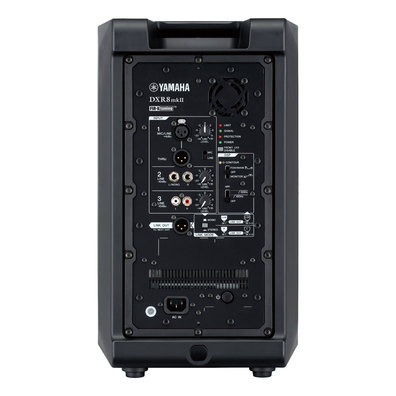

I/O接口 |
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1 |
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 |
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 |
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1 |
|
处理器 |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
|
电源要求 |
100V - 240V, 50Hz/60Hz |
100V - 240V, 50Hz/60 Hz |
100V - 240V, 50Hz/60Hz |
100V - 240V, 50Hz/60Hz |
|
功耗 |
110W |
110W |
90W |
90W |
|
吊装孔 |
Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) |
Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) |
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) |
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) |
|
支架插槽 |
35mm with 2-way features (0 or 7 degrees) |
35mm with 2-way features (0 or 7 degrees) |
35mm with 2-way features (0 or 7 degrees) |
35mm with 2-way features (0 or 7 degrees) |
|
外形尺寸 |
W |
445mm (17 4/8") |
362mm (14 2/8") |
305mm (12") |
280mm (11") |
|
H |
700mm (27 4/8") |
601mm (23 5/8") |
502mm (19 6/8") |
458mm (18") |
|
D |
380mm (15") |
350mm (13 6/8") |
310mm (12 2/8") |
280mm (11") |
|
净重 |
21.8kg (10.6lbs) |
18.6kg (10.6lbs) |
13.9kg (10.6lbs) |
12.8kg (10.6lbs) |
|
附件 |
UB-DXR15 (U-bracket) |
UB-DXR12 (U-bracket) |
UB-DXR10 (U-bracket) |
UB-DXR8 (U-bracket) |
|
其它 |
Material: ABS (Matte Finish, Black) |
Material: ABS (Matte Finish, Black) |
Material: ABS (Matte Finish, Black) |
Material: ABS (Matte Finish, Black) |
