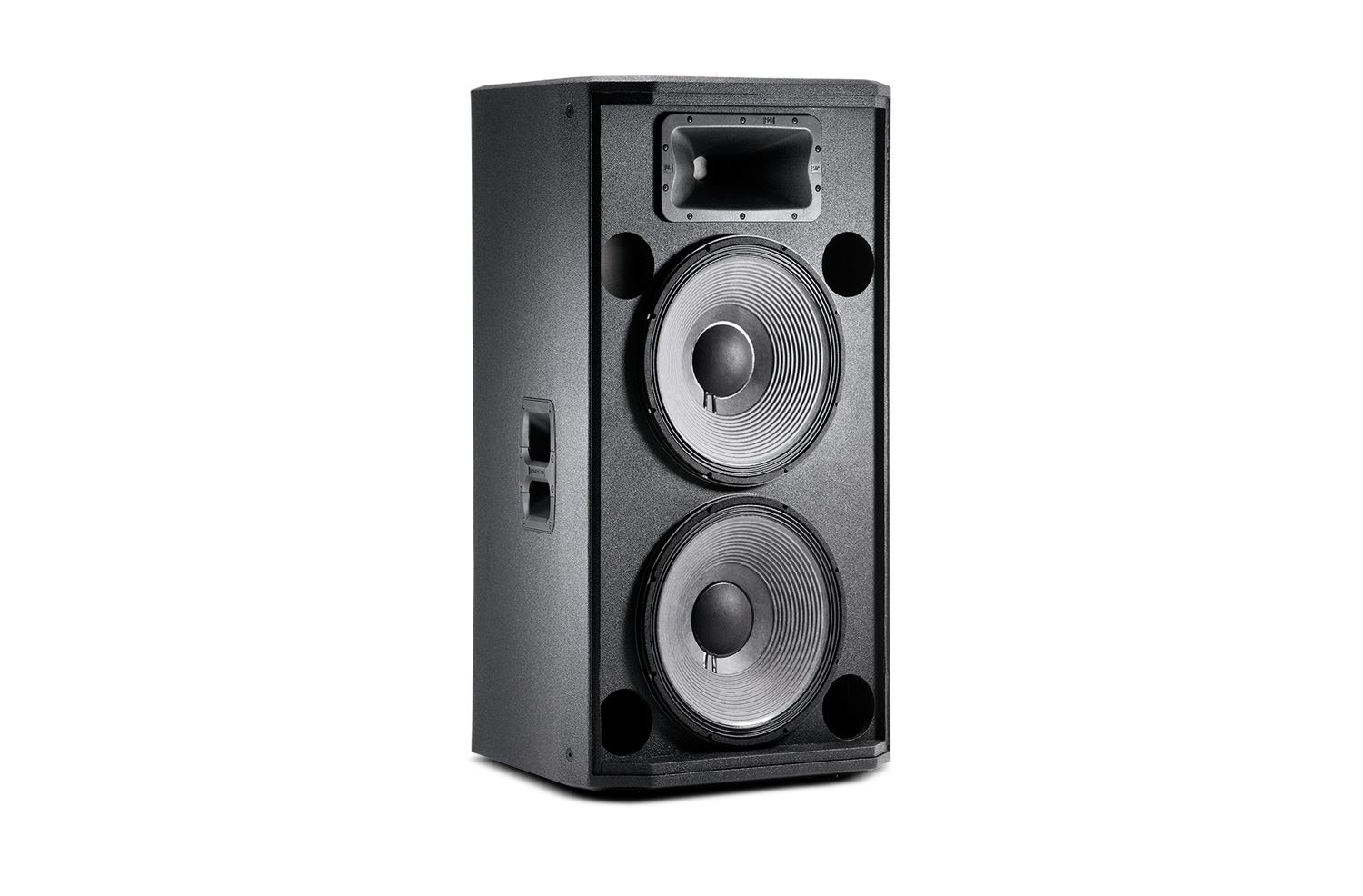

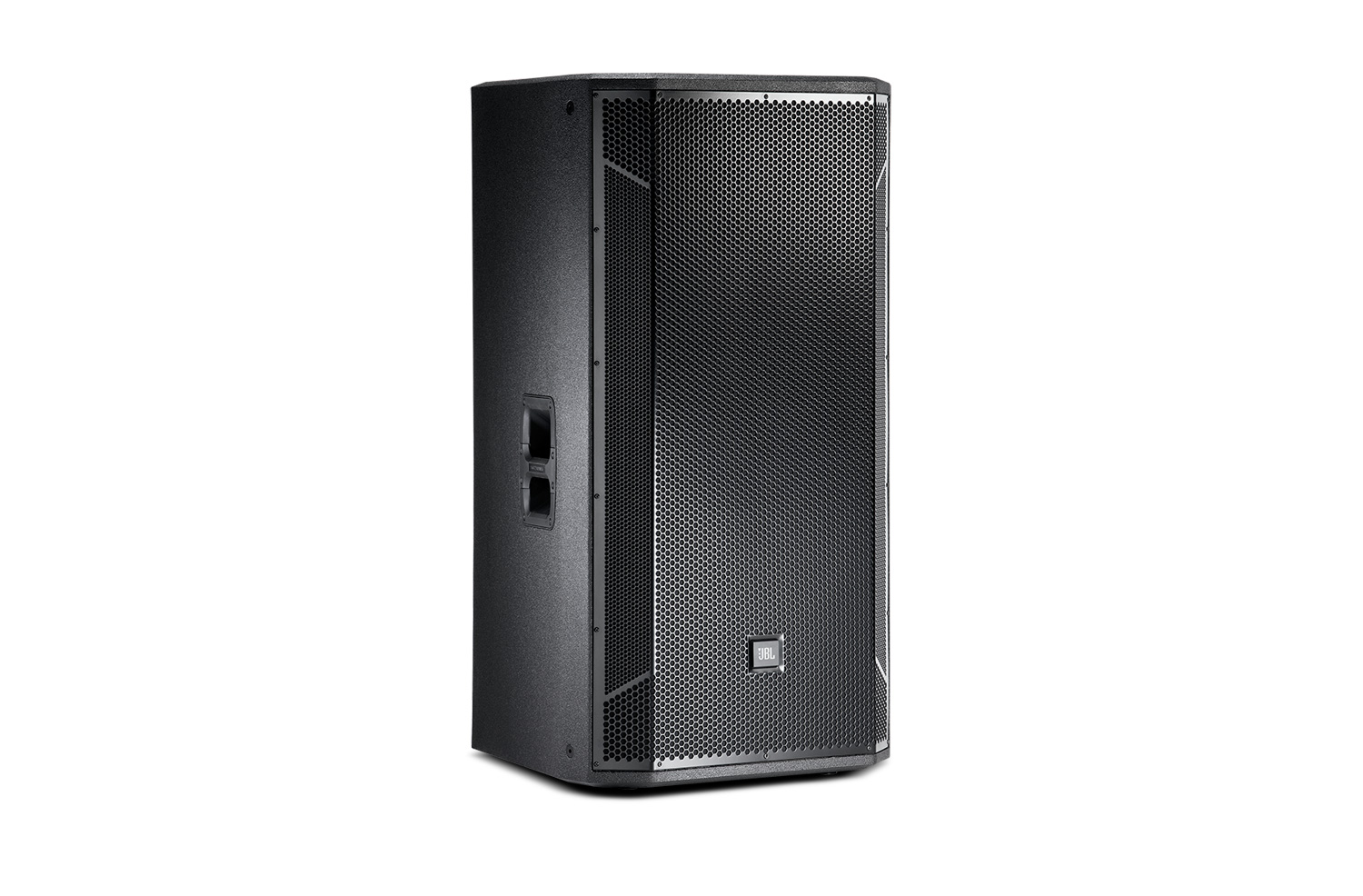

JBL STX825 二分频双15寸全频音箱
Dual 15" Two-Way, Bass-Reflex

A dual 15" two-way speaker designed for maximum impact, portability and ease of use. With a wide frequency range and broad 90 degree by 50 degree coverage angles, this speaker is ideal for bands or DJ’s as their primary PA, use as a side-fill on a concert stage, or as an install speaker in a dance club or performance venue.

Compact and very high-power.
Dual (15") Vented Gap Cooling™ low-frequency drivers for very high acoustic output.
102 mm (4 in) voice-coil neodymium compression driver for high-power capacity and very light-weight
90°x 50° coverage.
Bi-amplified or full-range passive operation.
Twelve M10 suspension points may be used with optional M10 eyebolts.
Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
14-Gauge steel grille lined with acoustically transparent cloth.

Frequency Response (-10dB)	34 Hz-20 kHz
Frequency Response (±3 dB)	42 Hz-19 kHz
覆盖范围	90˚ × 50˚ nominal
灵敏度	98 dB
额定功率	1600 W / 3200 W / 6400 W(Continuous/Program/Peak)
Maximum SPL (1m)	136 dB SPL Peak
标称阻抗	4Ω
输入连接器	Two NL4
Operational Modes	Full Range/Bi-Amp
尺寸（高 x 宽 x 厚）	1066 mm x 568 mm x 573 mm(42.0" x 22.4" x 22.6")
净重量	51 kg (112 lbs)
