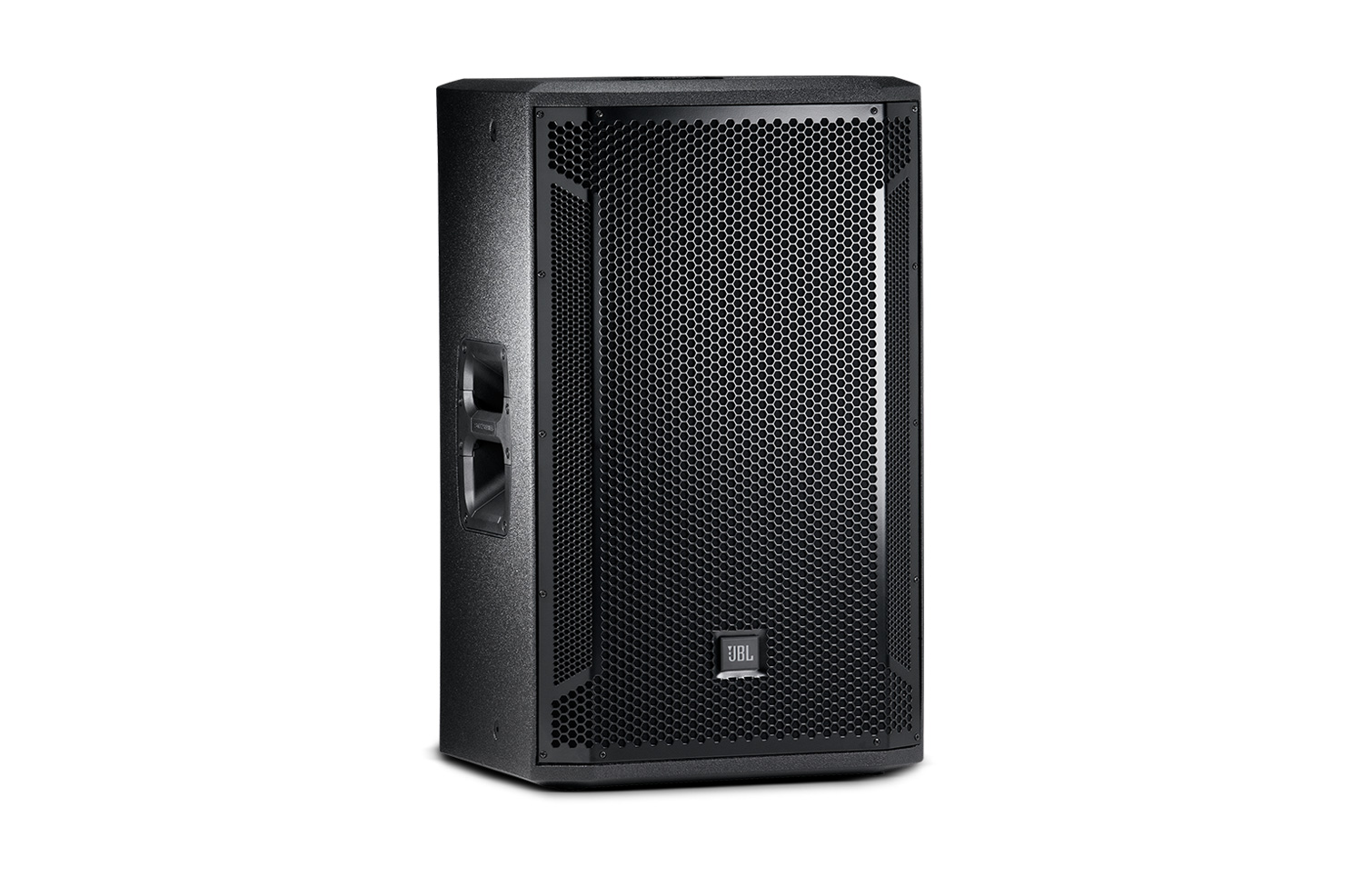

JBL STX815M 15" Two-Way, Bass-Reflex, Stage Monitor/Utility

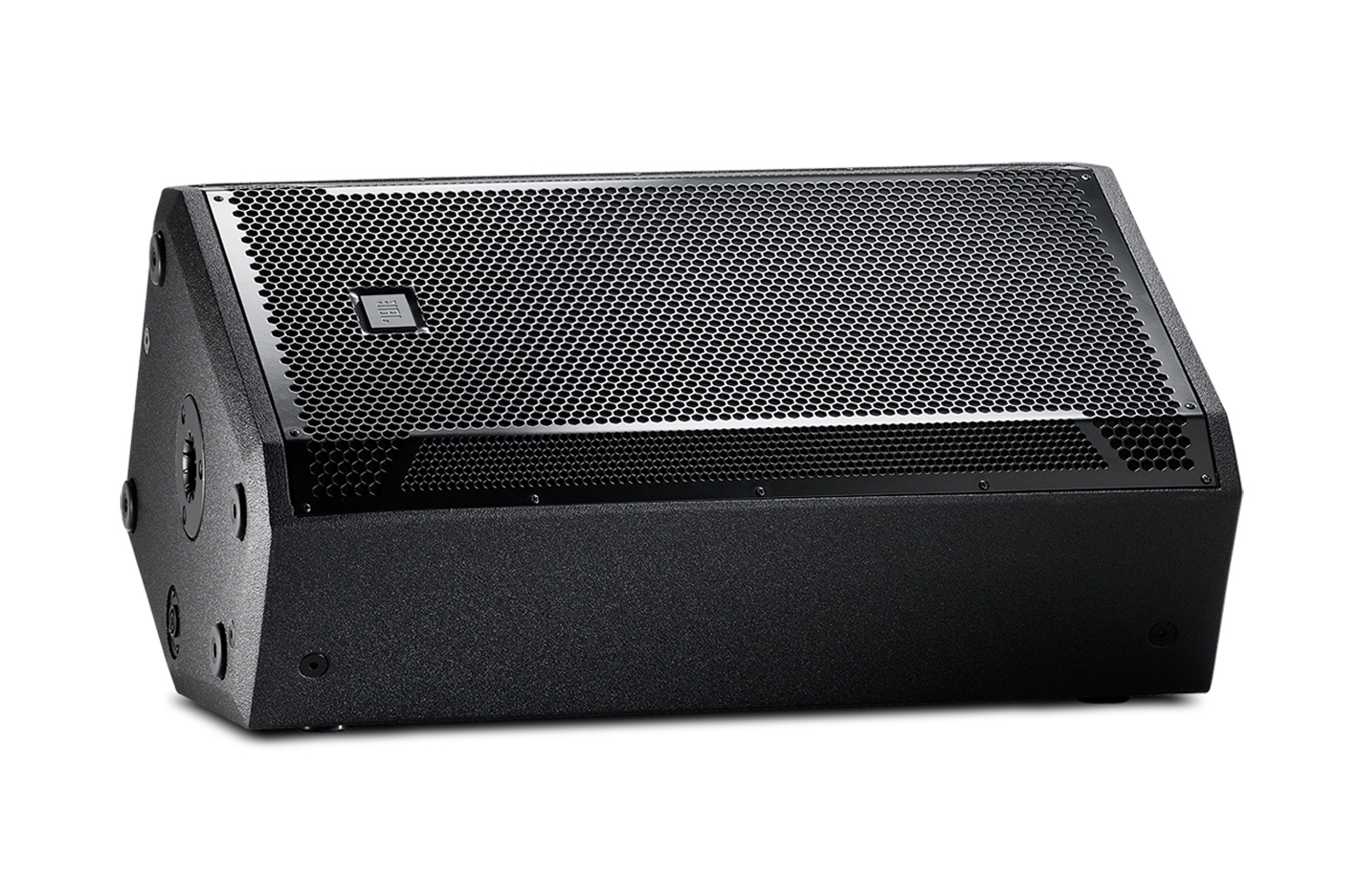

A single 15" lightweight two-way system designed to function as a high-power handling, FOH loudspeaker system or as an extended range floor monitor, it offers an extremely high level of performance either ground, pole or stand mounted. A 70 degree by 70 degree coverage angle for focused directivity control.

Compact and low-profile for minimal obstruction of audience sight-lines.
70°x 70° nominal coverage.
Bi-amplified or full-range passive operation.
Pole socket for applications requiring pole or tripod mounting.
Twelve M10 suspension points.

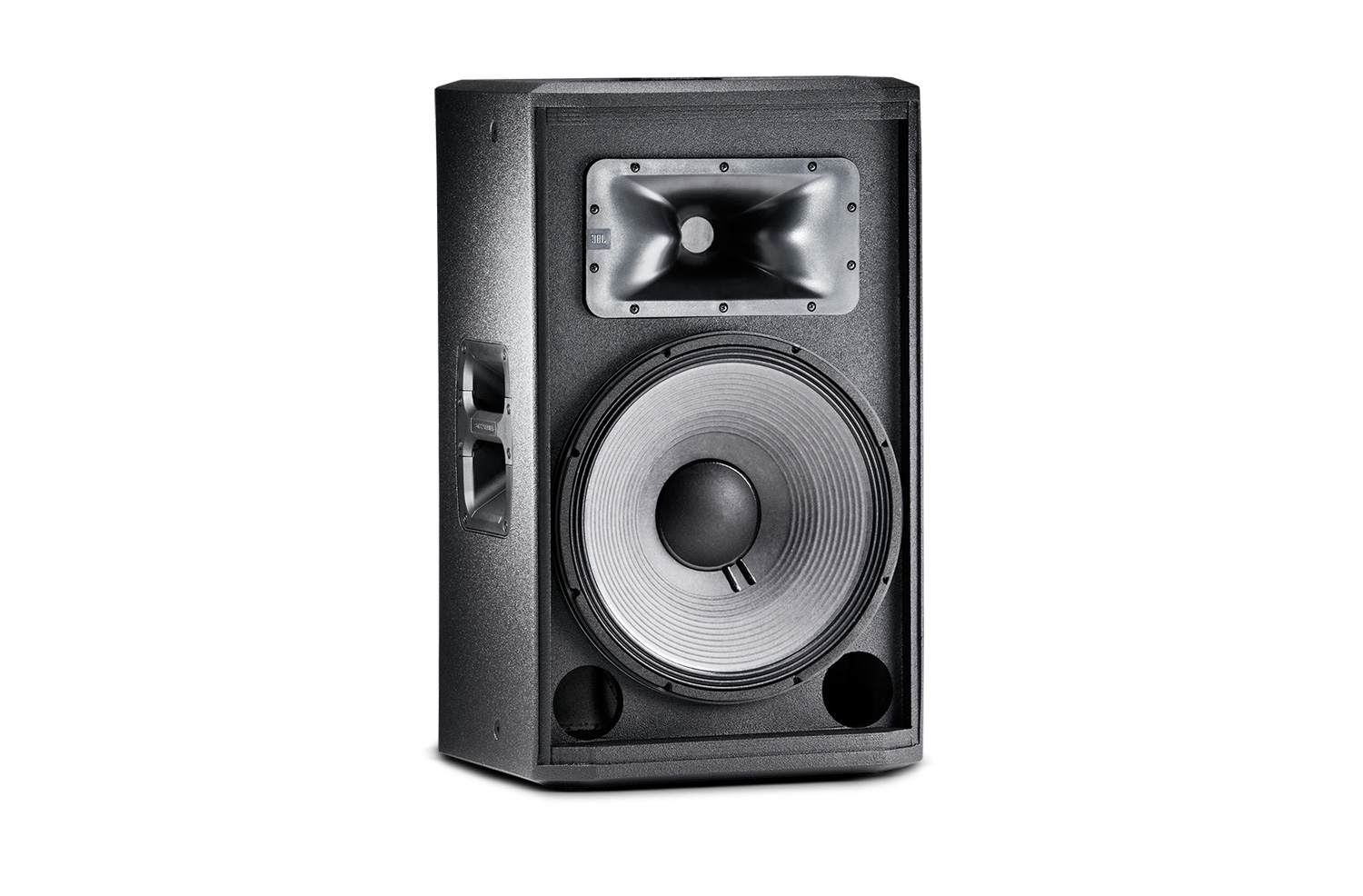

High power handling, low distortion Vented Gap Cooling™ LF driver.
3 in. (diaphragm) neodymium magnet compression driver.
Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
14-Gauge steel grille lined with acoustically transparent cloth.

Frequency Response (-10dB)	41 Hz-20 kHz
Frequency Response (±3 dB)	55 Hz-20 kHz
覆盖范围	70˚ × 70˚ nominal
灵敏度	96 dB
额定功率	800 W / 1600 W / 3200 W(Continuous/Program/Peak)
Maximum SPL (1m)	131 dB SPL Peak
标称阻抗	8Ω
输入连接器	Two NL4
Operational Modes	Full Range/Bi-Amp
尺寸（高 x 宽 x 厚）	721 mm x 436 mm x 329 mm (28.4" x 17.2" x 13.0")
净重量	26 kg (58 lbs)
